Wire Size Guide Chart

When installing DC powered appliances and accessories it’s important to use the proper size wire. The size of wire required for a given task depends on the voltage being used, the amount of amps required and also the distance that power is being transmitted. Don’t worry, calculating the wire size is made easy with the wire size guides below. We have a chart for 12-volt, 24-volt, 36-volt, 48-volt and 72-volt applications. Wire size by gauge, ampers draw and maximum feet of wire.

As in most electrical situations it is important that you know the maximum amp draw of the device being installed. You will also need to know that your power supply (e.g. alternator, battery, etc.) can produce more power than the amount being consumed by the DC device.

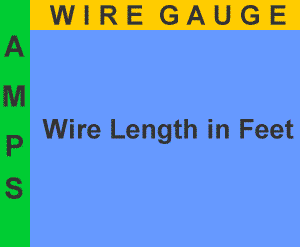

This guide shows how to view the below listed amp, gauge and wire feet charts.

How to use our wire guide charts

12-Volt Wire Size Guide

AMPS 14 ga. 12 ga. 10 ga. 8 ga. 6 ga. 4 ga. 2 ga. 1/0 ga.
1 45 70 115 180 290 456 720
2 22.5 35 57.5 90 145 228 360 580
4 10 17.5 27.5 45 72.5 114 180 290
6 7.5 12 17.5 30 47.5 75 120 193
8 5.5 8.5 15 22.5 35.5 57 90 145
10 4.5 7 12 18 28.5 45.5 72.5 115
15 3 4.5 7 12 19 30 48 76.5
20 2 3.5 5.5 9 14.5 22.5 36 57.5
25 1.8 2.8 4.5 7 11.5 18 29 46
30 1.5 2.4 3.5 6 9.5 15 24 38.5
40 2.8 4.5 7.0 6.5 18 29
50 2.3 3.6 5.5 9 14.5 23

24-Volt Wire Size Guide

AMPS 14 ga. 12 ga. 10 ga. 8 ga. 6 ga. 4 ga. 2 ga. 1/0 ga.
1 90 140 230 360 580 912 1440
2 45 70 115 180 290 456 720 1160
4 20 35 55 90 145 228 360 580
6 15 24 35 60 95 150 240 386
8 11 17 30 45 71 114 180 290
10 9 14 24 36 57 91 145 230
15 6 9 14 24 38 60 96 153
20 4 7 11 18 29 45 72 115
25 3.6 5.6 9 14 23 36 58 92
30 3 4.8 7 12 19 30 48 77
40 5.6 9 14 23 36 58
50 4.6 7.2 11 18 29 46

36-Volt Wire Size Guide

AMPS 14 ga. 12 ga. 10 ga. 8 ga. 6 ga. 4 ga. 2 ga. 1/0 ga.
1 135 210 345 540 870 1368 2160
2 67.5 105 172.5 270 435 684 1080 1740
4 30 52.5 82.5 135 217.5 342 540 1160
6 22.5 36 52.5 90 142.5 225 360 579
8 16.5 25.5 45 67.5 106.5 171 270 435
10 13.5 21 36 54 85.5 136.5 217.5 345
15 9 13.5 21 36 57 90 144 229.5
20 6 14 16.5 27 43.5 67.5 108 172.5
25 7.2 11.2 18 28 46 72 116 184
30 4.5 7.2 10.5 18 28.5 45 72 115.5
40 11.2 18 28 46 72 116
50 9.2 14.4 22 36 58 92

48-Volt Wire Size Guide

AMPS 14 ga. 12 ga. 10 ga. 8 ga. 6 ga. 4 ga. 2 ga. 1/0 ga.
1 180 280 460 720 1160 1824 2880
2 90 140 230 360 580 912 1440 2320
4 40 70 110 180 290 456 720 1160
6 30 48 70 120 190 300 480 772
8 22 34 60 90 142 228 360 580
10 18 28 48 72 114 182 290 460
15 12 18 28 48 76 120 192 306
20 8 14 22 36 58 90 144 230
25 7.2 11.2 18 28 46 72 116 184
30 6 9.6 14 24 38 60 96 154
40 11.2 18 28 46 72 116
50 9.2 14.4 22 36 58 92

72-Volt Wire Size Guide

AMPS 14 ga. 12 ga. 10 ga. 8 ga. 6 ga. 4 ga. 2 ga. 1/0 ga.
1 270 420 690 1080 1740 2736 4320
2 135 210 345 360 580 912 1440 3480
4 60 105 165 270 426 684 1080 1740
6 45 72 105 180 285 450 720 1158
8 33 51 90 135 213 342 540 870
10 27 42 72 108 171 217 435 690
15 18 27 42 72 114 180 288 489
20 12 21 33 54 87 135 216 345
25 10.8 16.8 27 42 69 108 174 276
30 9 14.4 21 36 57 90 144 231
40 16.8 27 42 69 108 174
50 13.8 21.6 33 54 87 138
