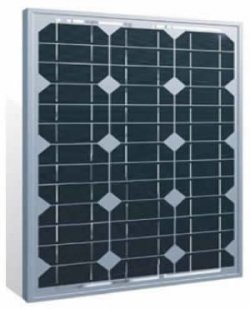

Monocrystalline Solar Panels

These Solar Panels are designed and manufactured for use in a wide range of on-grid and offgrid residential, commercial, industrial, and other solar power generation systems.

Each of these solar panels come with a junction box on the backside of the panel for quick and easy installation. The junction box also makes it very easy to connect multiple panels together. This is useful when wiring in series and or parallel. Wiring two of these solar panels in series will double the voltage essentially creating a 24 volt solar panel. Wiring in parallel will create a larger 12 volt solar panel.

Solar Panel Benefits

• Applies to commercial, residential and utility scale applications.
• Easily installed on the ground, roof, building face or tracking system.
• Designed and manufactured at an ISO 9001 certified factory.
• Junction boxes for quick installation.
• Integrated bypass diodes to protect solar cell circuit from hot spots during partial shading.
• Anodized aluminum frame improves load resistance capability for heavy wind loads.
• Low power tolerance of +/- 3% helps higher output power by reducing module string mismatch losses.
• Highly transparent, low-iron, tempered glass, and anti-reflective coating increases energy yield

Solar Panel Warranty
90% of power output for the first 10 years of the solar modules life and 80% for the next 15 years; a total of 25-year limited warranty. In addition to this performance guarantee. 3 year warranty on materials and workmanship!

Features

• Compact and rugged design
• Industrial conduit-ready junction box
• Lightweight anodized aluminum frame
• High transmissive tempered glass
• MC cable connectors included

SP30W - 30 watt Solar Panel

AM	1.5
Irradiation	1000W/m2
Tc	25℃

Module Type		30M
Max power Watt(Peak)	Pm(W)	30W
Power Tolerance	(%)	+/- 3
Max System Voltage	(VDC)	715
Max Power Voltage	Vmp (V)	17.2
Max Power Current	Imp (A)	1.74
Open Circuit Voltage	Voc (V)	21.6
Short Circuit Current	Isc (A)	1.94

Dimensions:Length*Width*Height	inches	16.77 x 26.77 x 1.18
Dimensions:Length*Width*Height	mm	426 x 680 x 30
Weight	Lbs	7.05Lbs
Weight	Kg	3.2KG
Frame(type, material)		Aluminum Alloy
Front glass		High Transmission, Low Iron, TemperedGlass,3.2mm

SP50W - 50 watt Solar Panel

AM	1.5
Irradiation	1000W/m2
Tc	25

Module Type		50M
50M	Pm(W)	50W
Power Tolerance	(%)	+/- 3
Max System Voltage	(VDC)	715
Max Power Voltage	Vmp (V)	18
Max Power Current	Imp (A)	2.78
Open Circuit Voltage	Voc (V)	22
Short Circuit Current	Isc (A)	3.2

Dimensions:Length*Width*Height	inches	28.30x21.85x1.37
Dimensions:Length*Width*Height	mm	719x555x35
Weight	Lbs	11.02Lbs
Weight	Kg	5KG
Frame(type, material)		Aluminum Alloy
Front glass		High Transmission, Low Iron, Tempered Glass,3.2mm

SP75W - 75 watt Solar Panel

AM	1.5
Irradiation	1000W/m2
Tc	25

Module Type		75M
Max power Watt (Peak)	Pm(W)	75W
Power Tolerance	(%)	+/- 3
Max System Voltage	(VDC)	1000
Max Power Voltage	Vmp (V)	17.3
Max Power Current	Imp (A)	4.35
Open Circuit Voltage	Voc (V)	21.7
Short Circuit Current	Isc (A)	4.72

Dimensions: Length*Width*Height	inches	47.04x21.29x1.18
Dimensions: Length*Width*Height	mm	1195x541x30
Weight	Lbs	17.63Lbs
Weight	Kg	8KG
Cable type, Diameter and Length		Copper core cable, 4mm2, TUV certified, 900mm
Frame(type, material)		Aluminum Alloy
Front glass		High Transmission, Low Iron, Tempered Glass,3.2mm

Dielectric Insulation Voltage	VDC	3000 max
Operating Temperature	°C	-45 to +85
Storage Temperature	°C	-45 to +85

SP85W - 85 watt Solar Panel

AM	1.5
Irradiation	1000W/m2
Tc	25

Module Type		85M
Max power Watt (Peak)	Pm(W)	85W
Power Tolerance	(%)	+/- 3
Max System Voltage	(VDC)	1000
Max Power Voltage	Vmp (V)	17.8
Max Power Current	Imp (A)	4.8
Open Circuit Voltage	Voc (V)	22.2
Short Circuit Current	Isc (A)	5.15

Dimensions: Length*Width*Height	inches	47.04x21.29x1.18
Dimensions: Length*Width*Height	mm	1195x541x30
Weight	Lbs	17.63Lbs
Weight	Kg	8KG
Cable type, Diameter and Length		Copper core cable, 4mm2, TUV certified, 900mm
Frame(type, material)		Aluminum Alloy
Front glass		High Transmission, Low Iron, Tempered Glass,3.2mm

Dielectric Insulation Voltage	VDC	3000 max
Operating Temperature	°C	-45 to +85
Storage Temperature	°C	-45 to +85

SP110W - 110 watt Solar Panel

AM	1.5
Irradiation	1000W/m2
Tc	25

Module Type		110M
Max power Watt (Peak)	Pm(W)	110W
Power Tolerance	(%)	+/- 3
Max System Voltage	(VDC)	1000
Max Power Voltage	Vmp (V)	17.3
Max Power Current	Imp (A)	6.42
Open Circuit Voltage	Voc (V)	21.6
Short Circuit Current	Isc (A)	7.46

Dimensions: Length*Width*Height	inches	58.26x26.37x1.18
Dimensions: Length*Width*Height	mm	1480 x 670 x 30
Weight	Lbs	17.63
Weight	Kg	8KG
Cable type, Diameter and Length		Copper core cable, 4mm2, TUV certified, 900mm
Frame(type, material)		Aluminum Alloy
Front glass		High Transmission, Low Iron, Tempered Glass,3.2mm

Dielectric Insulation Voltage	VDC	3000 max
Operating Temperature	°C	-45 to +85
Storage Temperature	°C	-45 to +85

SP230W - 230 watt Solar Panel

AM	1.5
Irradiation	1000W/m2
Tc	25

Module Type		230M
Max power Watt (Peak)	Pm(W)	230W
Power Tolerance	(%)	+/- 3
Max System Voltage	(VDC)	1000
Max Power Voltage	Vmp (V)	30.00
Max Power Current	Imp (A)	7.66
Open Circuit Voltage	Voc (V)	37
Short Circuit Current	Isc (A)	8.18

Dimensions: Length*Width*Height	inches	64.96x39.05x1.81
Dimensions: Length*Width*Height	mm	1650x992x46
Weight	Lbs	41.88Lbs
Weight	Kg	19KG
Cable type, Diameter and Length		Copper core cable, 4mm2, TUV certified, 900mm
Frame(type, material)		Aluminum Alloy
Front glass		High Transmission, Low Iron, Tempered Glass,3.2mm

Dielectric Insulation Voltage	VDC	3000 max
Operating Temperature	°C	-45 to +85
Storage Temperature	°C	-45 to +85

Solar Panel Charge Controllers
In order to ensure proper charging of your 12V or 24V battery or bank of batteries, you will need to use a charge controller with these solar panels.

To determine which charge controller you're going to need you must know how many amps your solar panel or array of solar panels are putting out. If you don't already know, follow this method.
The total number of watts of the solar panels divided by the DC volatge will give you the amount of amps.

For Example: The SP230W @ 12 Volts -> 230W divided by 12 Volts comes to 19.1 amps. This would require the PRS-2020 Charge Controller.

Select the appropriate charge controller here:Solar Charge Controller
