These DC powered heaters connect directly to the vehicle battery. They Do Not Plug Into a Lighter Socket!
These DC Thermal Heaters are some of the most powerful direct current heaters available today.

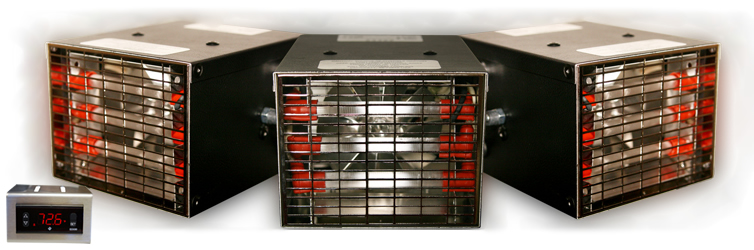

A Digital Temperature Controller can be added to ANY heater so that you can control the heat in your cabin or vehicle with the touch of a button. You set the desired temperature and the digital controller handles the rest!
DC Thermal engineers have spent countless hours developing this proprietary "Stealth IQ" Technology. This is the worlds ONLY Polymer Composite heating element encapsulated in a vacuum sealed quartz tube specifically designed for direct current!
These Polymer Elements feature a life expectancy of 10,000 hours which is almost 4 times the life of a standard alloy element. Not only are these elements designed to last a lifetime, but they are designed to be the ultimate in durability where vibration and moisture may be a factor.
The Stealth IQ will also put out up to 50% more heat than a standard element, while using the same power or amperage. The Polymer Element is vacuum sealed in a "Ruby" Quartz tube to protect it from any moisture or harsh conditions that the heater may be subjected to.
The Stealth IQ series also features injection molded high temp silicone tube boots that absorb vibration and will minimize any shock to the elements. This in addition to the overall design, will help to maximize the heaters life in the absolute worst conditions.
The Stealth IQ is a heater that is designed to literally last you a lifetime!
Prior to this Polymer Technology, mounting any alloy type heater vertically was not recommended because it will dramatically shorten the life of the elements. The Stealth IQ series however allows you to mount the heater vertically so that it may fit into an even smaller space.
The Stealth IQ is available in a "Marine" version. Select Marine from the "Add Ons" menu above.
SA12-2000 12 Volt - 20 Amps - 240 Watts - Max BTU 3674
- 12Volt DC heater rated at 20 Amps, 240 Watts and 3674 BTU's.
- 10,000 Hour Polymer Composite Element developed exclusively by DC Thermal and our associated Engineers.
- Vertical mounting capability.
- Designed specifically for use in the harshest outdoor environments featuring our proprietary quartz encapsulated composite elements and high-temp silicone vibration dampeners.
- Vacuum Sealed Elements
- 50% more efficient than standard alloy elements (same amps equals more heat)
- Constructed out of T5052 Vinyl Clad Aluminum.
- Available in NEW Black.
- M.M.V.S. (Motor Mount Vibration System)
- Dimensions(WxHxL): 5" x 4" x 6" (length is front to back)
SA12-3000 12 Volt - 30 Amps - 360 Watts - Max BTU 6012
- 12Volt DC heater rated at 30 Amps, 360 Watts and 6012 BTU's.
- 10,000 Hour Polymer Composite Element developed exclusively by DC Thermal and our associated Engineers.
- Vertical mounting capability.
- Designed specifically for use in the harshest outdoor environments featuring our proprietary quartz encapsulated composite elements and high-temp silicone vibration dampeners.
- Vacuum Sealed Elements
- 50% more efficient than standard alloy elements (same amps equals more heat)
- Constructed out of T5052 Vinyl Clad Aluminum.
- Available in NEW Black.
- M.M.V.S. (Motor Mount Vibration System)
- Dimensions(WxHxL): 5" x 4" x 6" (length is front to back)
SA12-4000 12 Volt - 40 Amps - 480 Watts - Max BTU 8016
- 12Volt DC heater rated at 40 Amps, 2352 Watts and 8016 BTU's.
- 10,000 Hour Polymer Composite Element developed exclusively by DC Thermal and our associated Engineers.
- Vertical mounting capability.
- Designed specifically for the harshest outdoor environments featuring our proprietary quartz encapsulated composite elements and high-temp silicone vibration dampeners.
- Vacuum Sealed Elements
- 50% more efficient than standard alloy elements (same amps equals more heat)
- Constructed out of T5052 Vinyl Clad Aluminum.
- Available in NEW Black.
- M.M.V.S. (Motor Mount Vibration System)
- Recommended for small to medium size Skid Steers.
- Dimensions(WxHxL): 5" x 4" x 6" (length is front to back)
SA12-5000 12 Volt - 50 Amps - 600 Watts - Max BTU 10,020
- 12Volt DC heater rated at 50 Amps, 600 Watts and 10,020 BTU's.
- 10,000 Hour Polymer Composite Element developed exclusively by DC Thermal and our associated Engineers.
- Vertical mounting capability.
- Designed specifically for the harshest outdoor environments featuring our proprietary quartz encapsulated composite elements and high-temp silicone vibration dampeners.
- Vacuum Sealed Elements
- 50% more efficient than standard alloy elements (same amps equals more heat)
- Constructed out of T5052 Vinyl Clad Aluminum.
- Available in NEW Black.
- M.M.V.S. (Motor Mount Vibration System)
- Our most popular model for Skid Steers and heavy equipment.
- Dimensions(WxHxL): 5" x 4" x 6" (length is front to back)
SA24-2500 24 Volt - 25 Amps - 600 Watts - Max BTU 10,020
- 24 Volt DC heater rated at 25 Amps, 600 Watts and 10,020 BTU's.
- 10,000 Hour Polymer Composite Element developed exclusively by DC Thermal and our associated Engineers.
- Vertical mounting capability.
- Designed specifically for the harshest outdoor environments featuring our proprietary quartz encapsulated composite elements and high-temp silicone vibration dampeners.
- Vacuum Sealed Elements
- 50% more efficient than standard alloy elements (same amps equals more heat)
- Constructed out of T5052 Vinyl Clad Aluminum.
- Available in NEW Black.
- M.M.V.S. (Motor Mount Vibration System)
- Dimensions(WxHxL): 5" x 4" x 6" (length is front to back)
SA24-3500 24 Volt - 35 Amps - 840 Watts - Max BTU 14,028
- 24 Volt DC heater rated at 35 Amps, 700 Watts and 14,028 BTU's.
- 10,000 Hour Polymer Composite Element developed exclusively by DC Thermal and our associated Engineers.
- Vertical mounting capability.
- Designed specifically for the harshest outdoor environments featuring our proprietary quartz encapsulated composite elements and high-temp silicone vibration dampeners.
- Vacuum Sealed Elements
- 50% more efficient than standard alloy elements (same amps equals more heat)
- Constructed out of T5052 Vinyl Clad Aluminum.
- Available in NEW Black.
- M.M.V.S. (Motor Mount Vibration System)
- Dimensions(WxHxL): 5" x 4" x 6" (length is front to back)
SA24-4500 24 Volt - 45 Amps - 1080 Watts - Max BTU 18,036
- 24 Volt DC heater rated at 45 Amps, 960 Watts and 18,036 BTU's.
- 10,000 Hour Polymer Composite Element developed exclusively by DC Thermal and our associated Engineers.
- Vertical mounting capability.
- Designed specifically for the harshest outdoor environments featuring our proprietary quartz encapsulated composite elements and high-temp silicone vibration dampeners.
- Vacuum Sealed Elements
- 50% more efficient than standard alloy elements (same amps equals more heat)
- Constructed out of T5052 Vinyl Clad Aluminum.
- Available in NEW Black.
- M.M.V.S. (Motor Mount Vibration System)
- Dimensions(WxHxL): 5" x 4" x 6" (length is front to back)
SA36-2000 36 Volt - 20 Amps - 720 Watts - Max BTU 12,024
- 36 Volt DC heater rated at 20 Amps, 720 Watts and 12,024 BTU's.
- 10,000 Hour Polymer Composite Element developed exclusively by DC Thermal and our associated Engineers.
- Vertical mounting capability.
- Designed specifically for the harshest outdoor environments featuring our proprietary quartz encapsulated composite elements and high-temp silicone vibration dampeners.
- Vacuum Sealed Elements
- 50% more efficient than standard alloy elements (same amps equals more heat)
- Constructed out of T5052 Vinyl Clad Aluminum.
- Available in NEW Black.
- M.M.V.S. (Motor Mount Vibration System)
- Dimensions(WxHxL): 5" x 4" x 6" (length is front to back)
SA36-3600 36 Volt - 25 Amps - 900 Watts - Max BTU 16,032
- 36 Volt DC heater rated at 25 Amps, 900 Watts and 16,032 BTU's .
- 10,000 Hour Polymer Composite Element developed exclusively by DC Thermal and our associated Engineers.
- Vertical mounting capability.
- Designed specifically for the harshest outdoor environments featuring our proprietary quartz encapsulated composite elements and high-temp silicone vibration dampeners.
- Vacuum Sealed Elements
- 50% more efficient than standard alloy elements (same amps equals more heat)
- Constructed out of T5052 Vinyl Clad Aluminum.
- Available in NEW Black.
- M.M.V.S. (Motor Mount Vibration System)
- Dimensions(WxHxL): 5" x 4" x 6" (length is front to back)
SA48-2000 48 Volt - 20 Amps - 960 Watts - Max BTU 16,032
- 48 Volt DC heater rated at 20 Amps, 960 Watts and 16,032 BTU's.
- 10,000 Hour Polymer Composite Element developed exclusively by DC Thermal and our associated Engineers.
- Vertical mounting capability.
- Designed specifically for the harshest outdoor environments featuring our proprietary quartz encapsulated composite elements and high-temp silicone vibration dampeners.
- Vacuum Sealed Elements
- 50% more efficient than standard alloy elements (same amps equals more heat)
- Constructed out of T5052 Vinyl Clad Aluminum.
- Available in NEW Black.
- M.M.V.S. (Motor Mount Vibration System)
- Dimensions(WxHxL): 5" x 4" x 6" (length is front to back)
SA48-2500 48 Volt - 25 Amps - 1200 Watts - Max BTU 20,000
- 48 Volt DC heater rated at 25 Amps, 1200 Watts and 20,000 BTU's.
- 10,000 Hour Polymer Composite Element developed exclusively by DC Thermal and our associated Engineers.
- Vertical mounting capability.
- Designed specifically for the harshest outdoor environments featuring our proprietary quartz encapsulated composite elements and high-temp silicone vibration dampeners.
- Vacuum Sealed Elements
- 50% more efficient than standard alloy elements (same amps equals more heat)
- Constructed out of T5052 Vinyl Clad Aluminum.
- Available in NEW Black.
- M.M.V.S. (Motor Mount Vibration System)
- Dimensions(WxHxL): 5" x 4" x 6" (length is front to back)
All heater model variants include a toggle switch which has three positions. The toggle switch position options are Low, Off and High power.
When high power is selected the heater will perform as described here. When the heater is switched into low power mode the heater will use one third (1/3) to one half (1/2) of the power described here.
These heaters use different numbers of heating elements and the toggle switch from low to high determines how many elements are powered on. For heaters that include two heating elements the low toggle position will power just one element, the high position powers both.
Heaters with three elements with the toggle in the low position two of the three elements will be powered.
Heaters built with four elements with the toggle in the low position two heating elements will receive power while the other two remain powered off.
